Moab Juggernaut

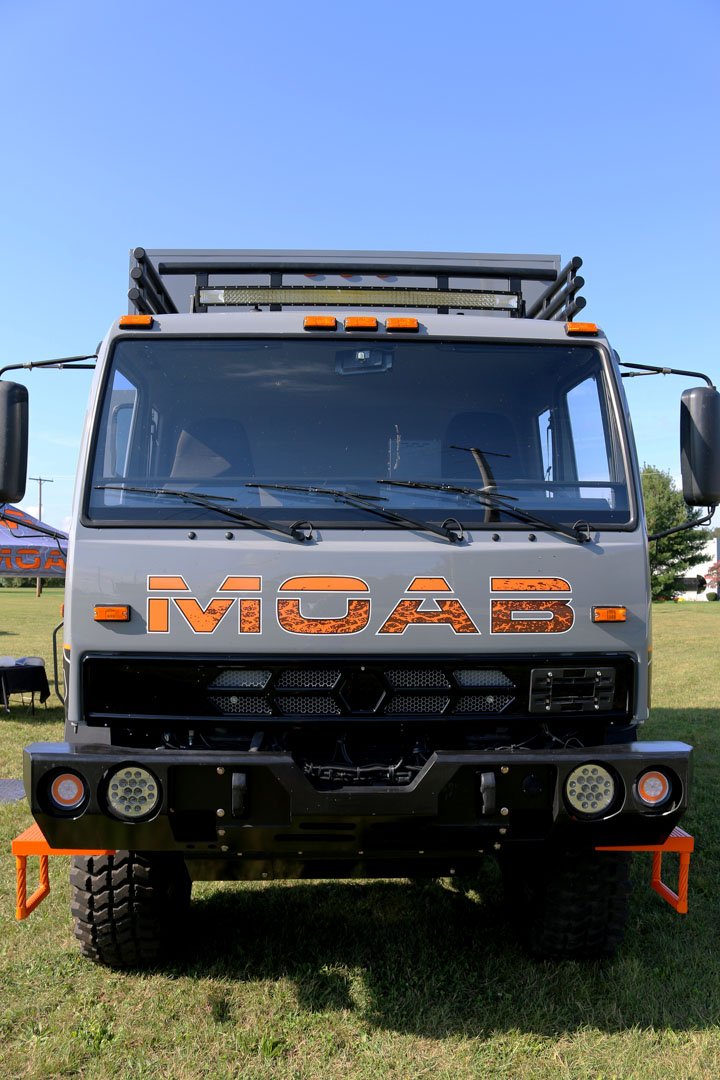

  • ACELA Monterra 4x4 Extreme-Duty Class 6-7 Cab & Chassis
  • Full-Time All-Wheel Drive
  • 330HP Caterpillar 7.2L Turbo-Charged Diesel Engine
  • Allison Automatic 7-Speed Transmission
  • Top Speed 74 MPH
  • Former Military Vehicle w/U.S Army “Ultra-Reliable” Certificate
  • 22” Ground Clearance
  • Air-Ride Seating
  • Cameras: Back-up/left/right turn viewing on 7” viewing screen
  • Dash mounted stereo (AM/FM/DVD) w/6.2” Touchscreen
  • Central Tire Inflation System (CTIS)
  • Dash Switches for lighting controls
  • 58 Gallon Fuel tank offers approx. 400+ mile range
  • Power steering assist
  • Parabolic-tapered leaf springs w/ hydraulic twin-tube shocks
  • ABS brakes with supplemental air-actuated driver controlled exhaust “Jake” brake
  • 46” Goodyear MV/T, 14-Ply, 81MPH-Rated Tires, Load-Range G Super Singles
  • Rack-Mounted, Hydraulic Lift for spare tire
  • Dual Voltage, 12/24VDC, Central Power Distribution panel
  • 100 amp, 12/24 volt, Waterproof, EMI/RFI Suppressed
  • Four (4)-6T Commercial Batteries, 3000 CCA, 480 CA


  • RS designed body/frame that is self-supporting. Doesn't need a monocoque shell to support itself. Box frame structure is welded and huck fastened together for maximum strength
  • Exterior entry/exit with articulating step
  • Grab handle and railing at entry door for extra convenience
  • Multiple metal storage areas with lockable doors
  • Fully painted body to match truck
  • All tanks are easily accessible through exterior storage doors
  • All components are self-contained within the structure of the shell, allowing the habitat to be unbolted from chassis


  • Large dining table with seating for 6, converts to a King Bed
  • High ceilings w/premium soft touch headliner
  • Closet w/shelves and hanging rod
  • Under dinette storage
  • Cab over storage
  • Commercial grade flooring for easy cleaning
  • Premium seating material
  • Commercial grade laminate cabinets w/soft close mechanism
  • Push button latches
  • Solid surface countertops throughout


  • 52” LED light bar on front of cab
  • LED tail and brake lights, upper and lower, & marker lights
  • LED reverse lights
  • LED rear license plate light
  • Fog lights
  • OEM driving lights
  • 3-LED 12” security lights


  • Zoned lighting throughout
  • Independent on/off switches for overheads, bathroom, dinette, kitchen and outside security lights

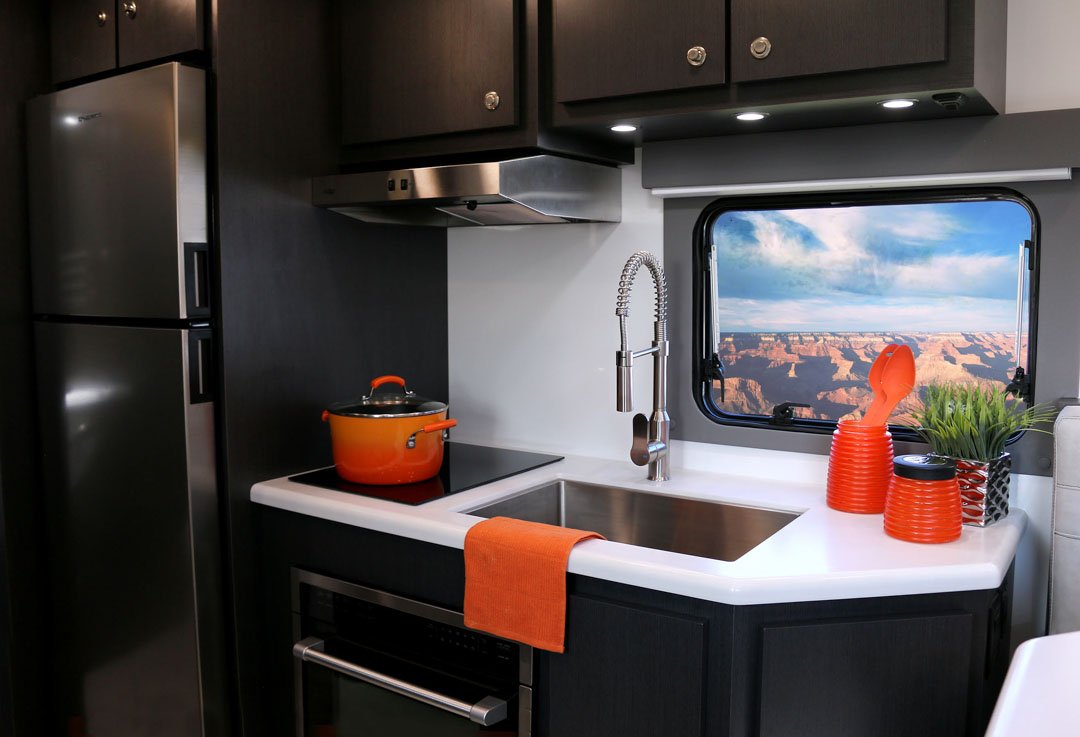

  • Residential style stainless-steel sink w/ large faucet
  • Under cabinet storage for trash can
  • Residential style solid surface countertops
  • Removable-double burner induction cooktop. Take outside and plug in at your convenience
  • Convection microwave/oven
  • Refrigerator/freezer
  • Exhaust hood
  • Overhead cabinet storage
  • Base cabinet storage
  • Washer/dryer cabinet with pull-out storage drawer
  • Countertop space with outlets for charging computer or coffee pot
  • Wall-mounted Smart TV
  • Ceiling skylight for roof access above dinette table


  • Residential style, fully dry, enclosed bathroom with toilet
  • Residential style walk-in shower
  • Vanity mirror
  • Floor to ceiling storage cabinet beside toilet
  • Lower cabinet storage w/pass-through to rear exterior storage
  • Removable shower wand on height adjustable slide bar
  • Sink with premium fixtures
  • Premium toilet paper holder
  • Shower has skylight for extra lighting and headroom
  • Variable speed exhaust fan with rain cover


  • 48 Volt Energy System. NOTE: Our 48 Volt System is 2 Times more efficient than leading competitors 24 Volt systems and 4 times more efficient than a 12 Volt system!
  • 50 Amp Service
  • 6000 Watts of inverter power
  • Available Run Time:
    • Max A/C- Leading industry at 21 Hours
    • Running Full System (Heater, A/C, Microwave, Cooktop, etc.) at 10 Hours (Solar/Alternator/Shore power adds additional time)
  • Recharge Time if operating at full capacity, Less than 5 hours
  • Recharge Time if operating at full capacity with sunlight/solar, just over 3 Hours
  • 17 Kilowatts-Energy Storage System
  • Two (2) 8440Watt Hour Module Lithionics UL listed Lithium-Ion Batteries
  • 1.5 Kilowatts-Merlin Flexible Solar Panels for supplemental charging
  • Market-leading remote interface w/ Bluetooth and Wi-Fi-based app
  • Victron Touch screen control panel provides state of the art system control and monitoring
  • 120V AC outlets located in front overhead, dinette, kitchen, washer/dryer cabinet, bathroom, and storage area
  • 20 Amp AC outlet in compartment


  • Two (2) 75 Gallon self-contained and heated fresh water holding tanks w/manual drain valve (total 150 Gallons of fresh water)
  • 40 Gallon self-contained and heated waste black tank w/manual drain valve
  • 30 Gallon self-contained and heated waste grey tank w/manual drain valve
  • Tank monitoring system
  • High-capacity water pump
  • 10-Gallon water heater
  • Exterior shower with hot and cold water


  • Nomadic Cooling, 3000 48 Volt A/C, 12,480 BTU; Comes standard with 48 Volt brushless motor; Highly efficient while reducing noise and increases motor life
  • Two (2) thermostat-controlled toe kick heaters
  • Dual pane windows fully open to bring the outside in
  • Roof hatch with vent fan, screen, and escape hatch


  • Carbon Monoxide/smoke detector
  • Fire extinguisher
  • Roadside safety kit


  • Fresh water hose
  • Waste tank hose
  • Axe and shovel mounted in rear storage area
  • Metal Constructed Storage boxes built into sub-floor frame
  • 50 Amp shore cord


Overall Length 25’ 3”
Overall Height (w/AC) 12’ 8”
Interior Height 81.5”
Overall Length 126″
Overall Width 97”
Interior Width 92.5”
Wheelbase 153.5”
GVWR 32,000 lbs


Fresh 150 Gal
Grey 30 Gal
Black 40 Gal
